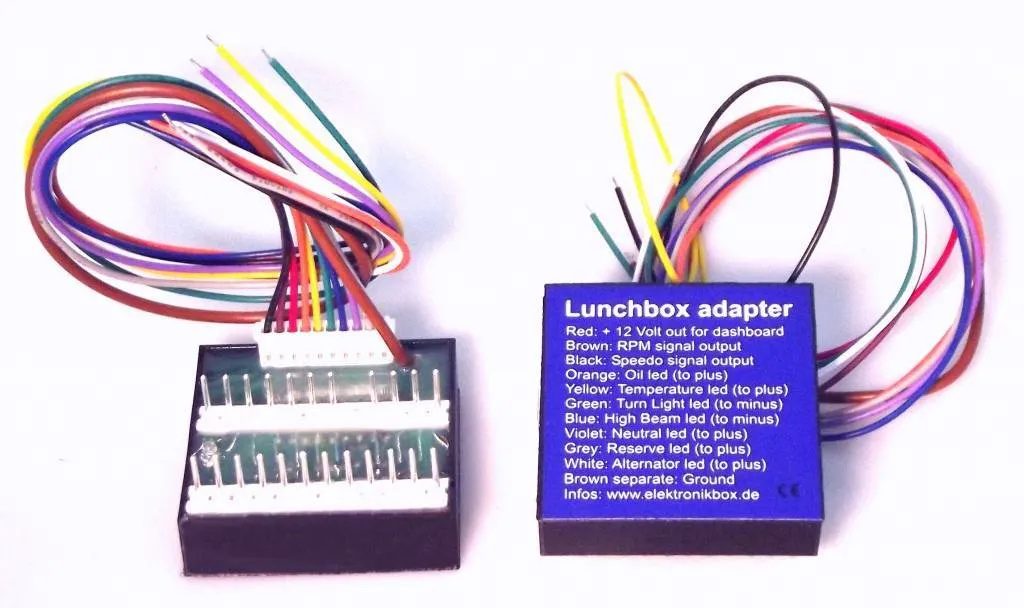

The Lunchbox-Adapter allow the connection of different new speedos on the old harness connector what was connected to the old BMW speedo.
Suits K75 and K100 (not K1100)

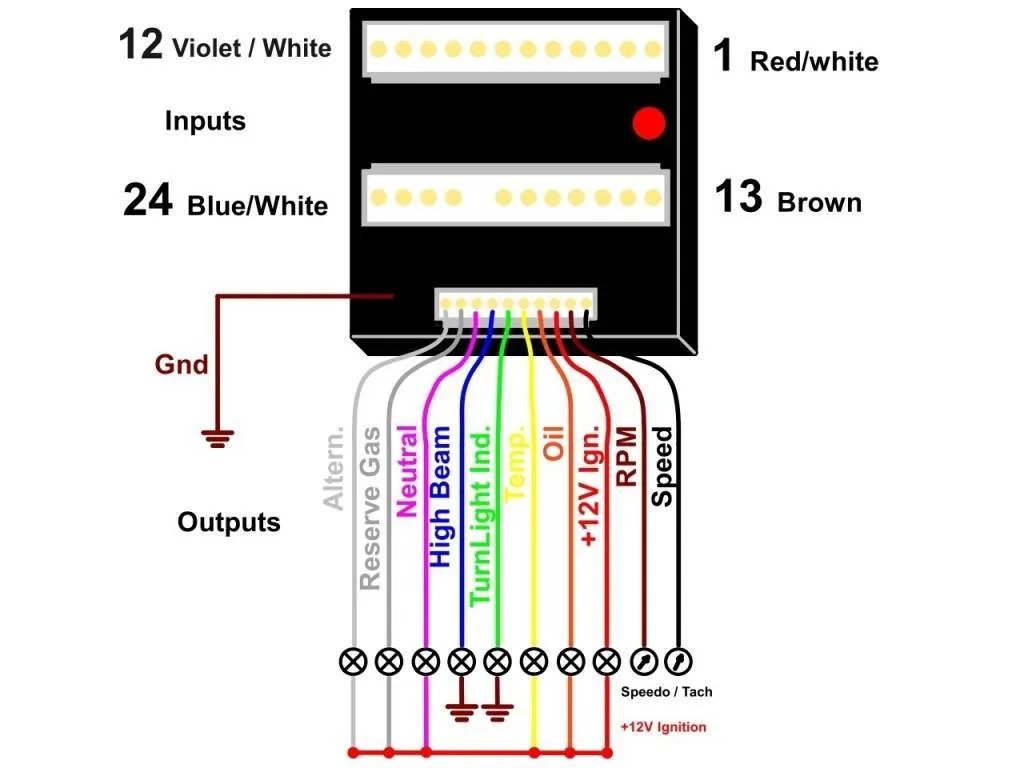

The adapter makes the conversion of the old harness signals to a modern speedo easy. 10 output cables allow to indicate all necessary signals. The neutral signal is now compatible to modern speedos and the virtual load for the alternator is implemented as well.
| Dimensions: | 51 mm x 51 mm x 15 mm w/o connectors |
| Body material: | abs, 2k potted, water resist |
| Connections: | JST 12 pin inputs, 0,14 qmm output to Speedo |
| Maximum temperature: | 90 degree Celsius |
| Input voltage range: | 8 - 15 Volt |
