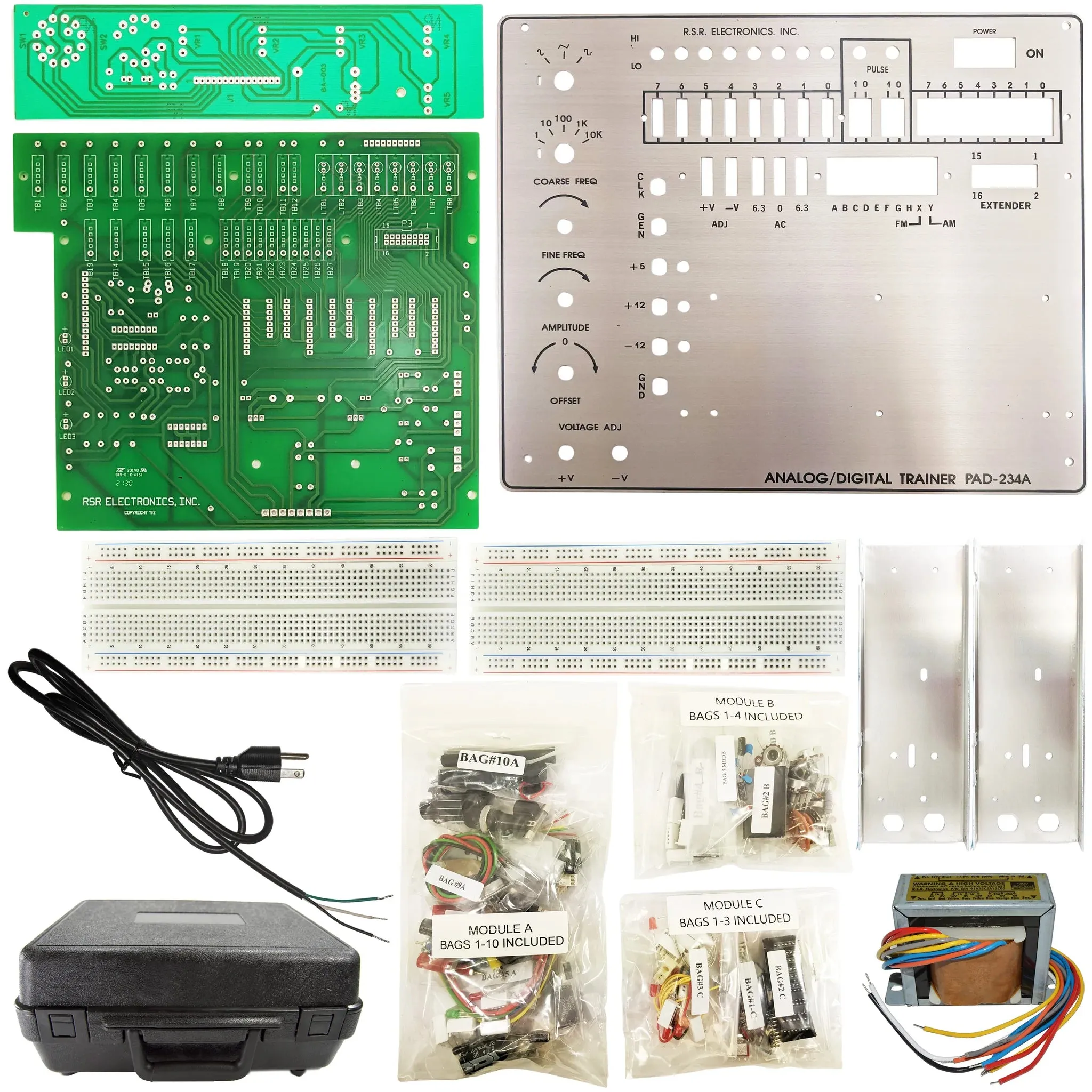

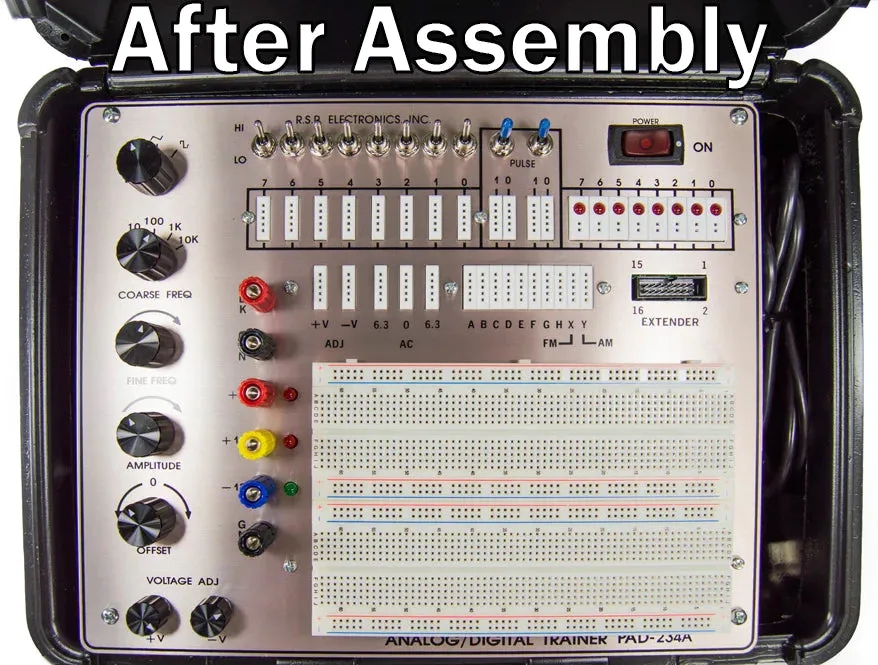

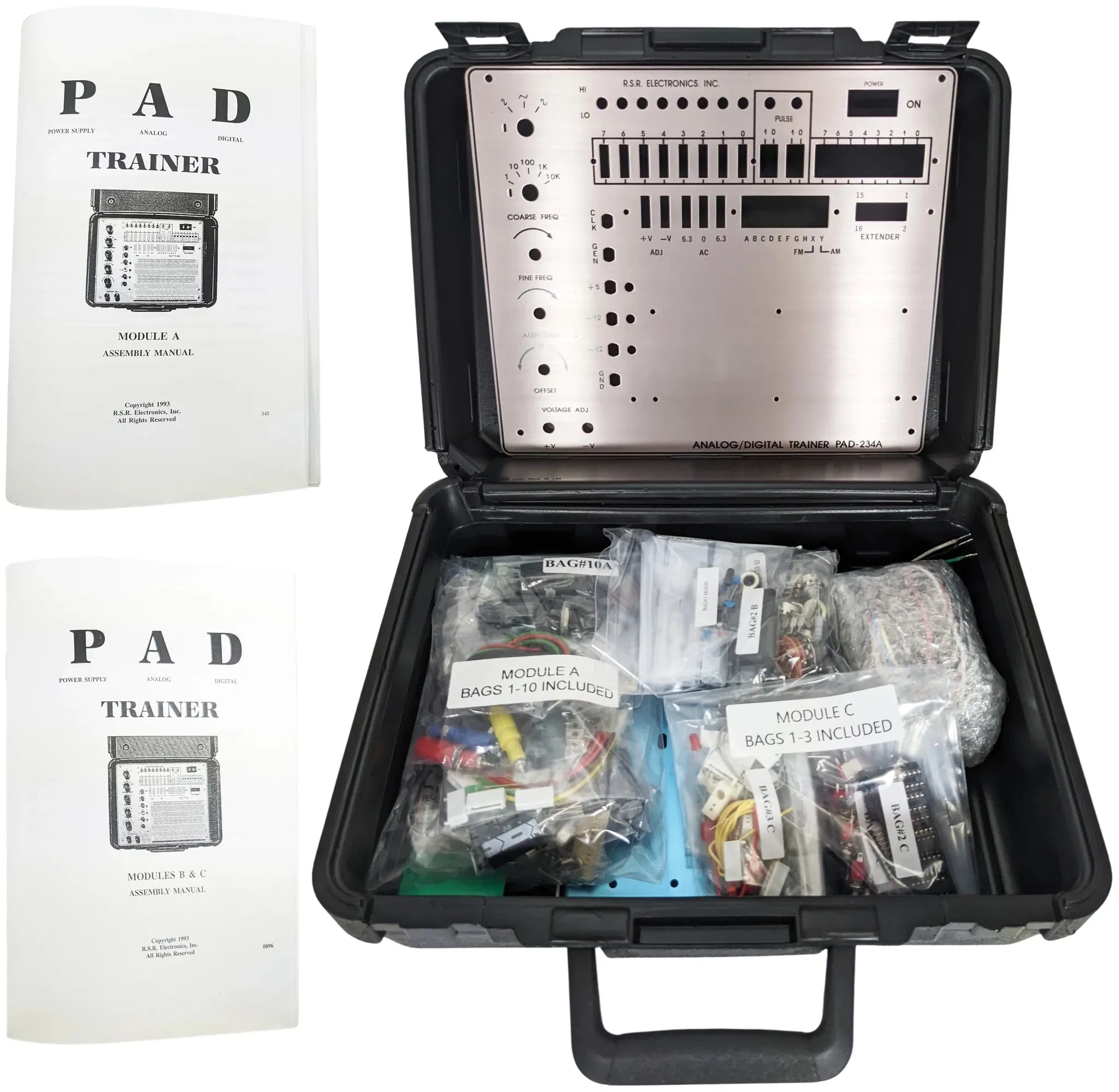

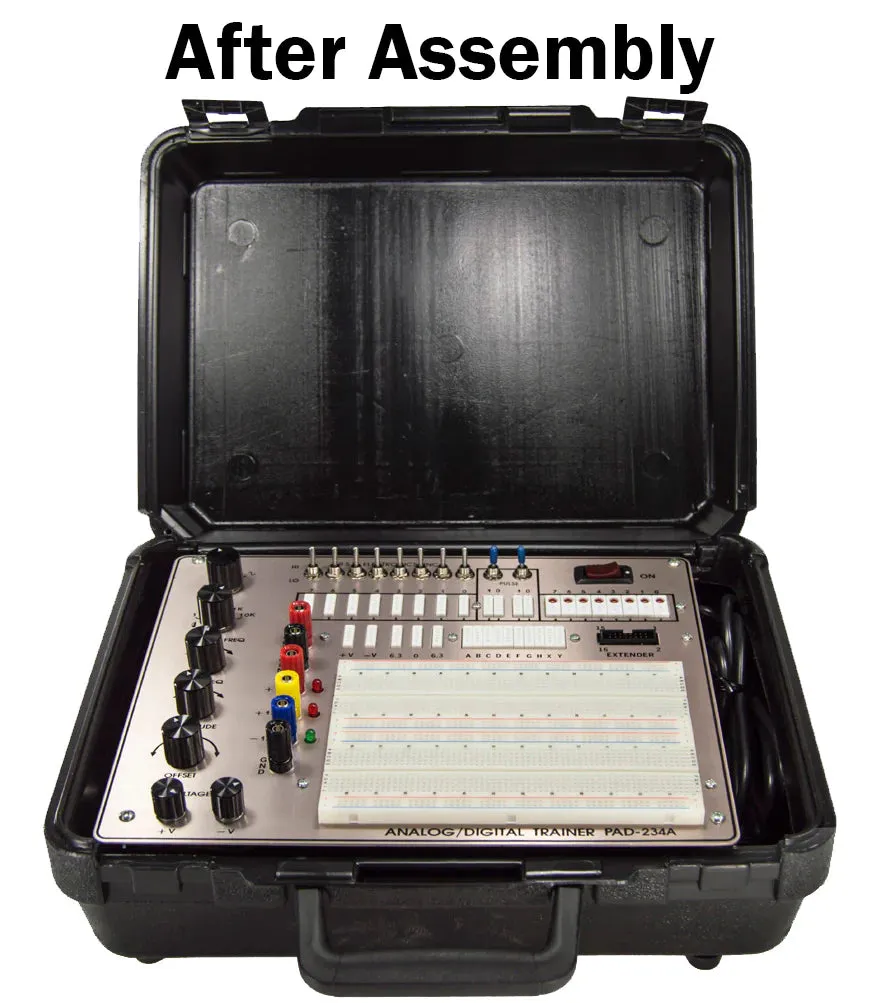

The PAD-234 Digital/Analog Trainer is a complete portable work-station. It is designed to allow you to quickly build, modify, and troubleshoot all sorts of analog and digital circuits. Its built-in power supplies, signal sources, and I/O features can save hundreds of dollars when compared to using separate pieces of lab equipment. For expanded capability the supplies, signals, and I/O, along with uncommitted lines, are available at a built-in IDC connector to allow ribbon cable connection to other boards, devices, or pieces of equipment.
The PAD-234 is a rugged, high-quality piece of equipment designed for years of use with minimal maintenance. It's functionality and low cost make the PAD-234 a cost-effective design tool for hobbyists and professionals. The same features make it the ideal educational tool for student use.
Specifications:
- 5V Fixed Power Supply
- /- 12V Fixed Power Supplies
- /- 15V Variable Power Supplies
- Output current 1 AMP DC each
- Short circuit protected
- 12.6V AC CT Power Supply
- Input voltage 110VAC 50–60 cycles
Function Generator:
- Sine, square and triangular buffered outputs
- Amplitude 10V p-p output 5 frequency ranges 1-100KHz
- DC offset adjust
Digital I/O:
- 8 buffered LED indicators
- 8 SPDT toggle switches 0-5V
- 2 debounced momentary switches 0-5V
- Normally Hi and normally Lo levels both available
- TTL level clock slaved to generator: 0-5V, risetime < 400nsec
Additional Features:
- 2 breadboards, each with 840 plug-in tie points
- Option to make breadboard moveable
- Power supplies, function generator, and digital I/O available at built-in IDC connector

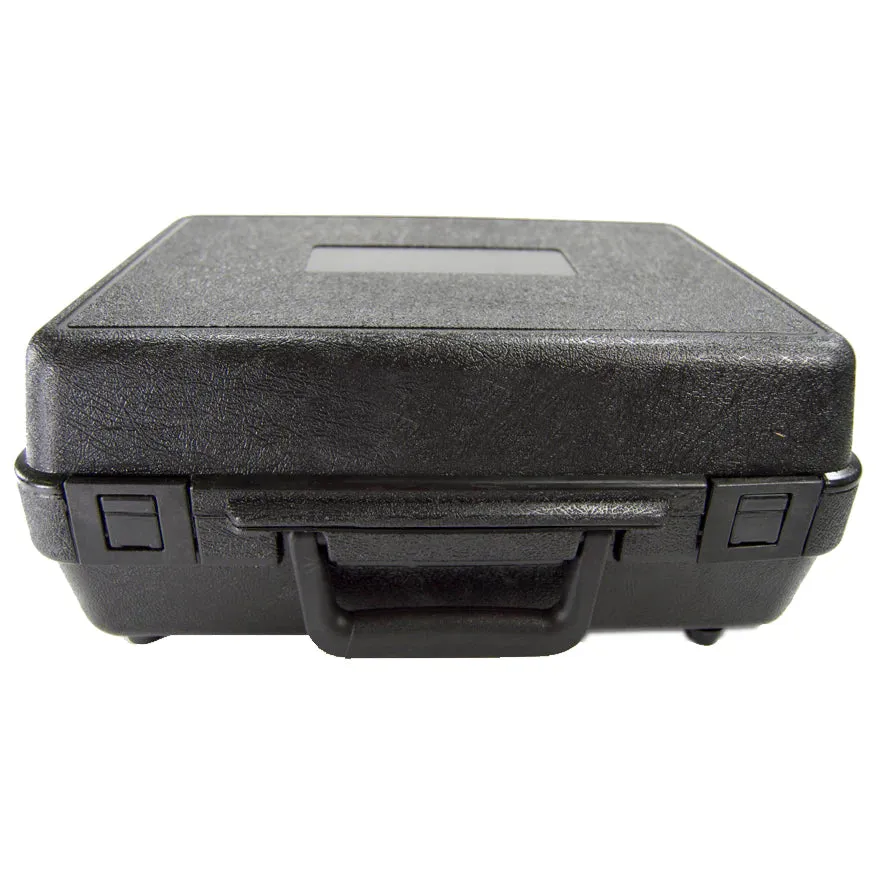

- High-impact plastic carrying case
- 3-wire fuse-protected line cord
- 5-way binding posts for power supplies and generator
